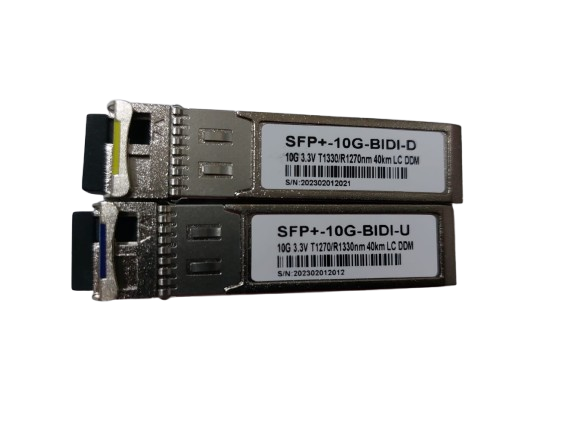

SFP+ 10G BiDi 40km Transceiver Modules – Downstream (1270nm Tx / 1330nm Rx) and Upstream (1330nm Tx / 1270nm Rx) Single Fiber 10GbE Optics

BiDi 10G 40km Single Mode Fiber SFP+ | 10 Gig Extended Range (ER) Bidirectional SFP

KSh 6,499.00

The 10G BiDi 40km SFP+ is a pair of long-distance Bi-Directional transceivers designed to provide high-performance, cost-effective fiber connectivity through Single Mode Fiber over a single fiber strand. Instead of using two fibers for transmission (Tx) and reception (Rx), BiDi modules pair together—one as Downstream (D) and the other as Upstream (U)—to achieve full-duplex communication.

  • SFP+ 10G BiDi-D (Downstream): Transmits at 1270 nm and receives at 1330 nm.

  • SFP+ 10G BiDi-U (Upstream): Transmits at 1330 nm and receives at 1270 nm.

When deployed together, these modules double fiber efficiency, reduce infrastructure costs, and deliver up to 10Gbps data rates for up to 40km.

BiDi SFPs are widely used in data centers, enterprise networks, FTTx deployments, and telecom backbones, where high bandwidth and fiber optimization are critical.

Add to quote
Add to wishlist
Price History
SKU: BDSFP-10G-40km-D-U Categories: , , , Tags: , , , , , , , , , , , , , , , , , , , , , Brand:

Additional information

Product Type:

BiDi (Bidirectional) SFP+ Transceiver
Form Factor:

SFP+ (Small Form-factor Pluggable Plus)
Transmission Speed:

10Gbps
Transmission Distance:

40km
Fiber Type:

Single-Mode Fiber (SMF)
Connector Type:

LC Duplex (BiDi requires only 1 fiber)
Wavelength (Tx/Rx):

BiDi-D: 1270nm Tx / 1330nm Rx

BiDi-U: 1330nm Tx / 1270nm Rx
Compatibility:

IEEE 802.3ae 10GBASE-BX
Hot-Pluggable:

Yes
Operating Temperature:

0°C to 70°C (Commercial) or -40°C to 85°C (Industrial)
Power Consumption:

3.3V
DDM/DOM Support:

Yes (Digital Diagnostics Monitoring)
Network Speed:

10G SFP+
Distance Support:

40km
Fiber Mode:

Single Fiber (BiDi)
Application:

Data Center, Enterprise, ISP, Telecom Backbone
Compatibility Brand:

Designed for cross-brand compatibility and should work with popular switches available in the East African market i.e. TP-Link, Cisco, Huawei, Mikrotik, Ubiquiti, Aruba, etc
